Product description

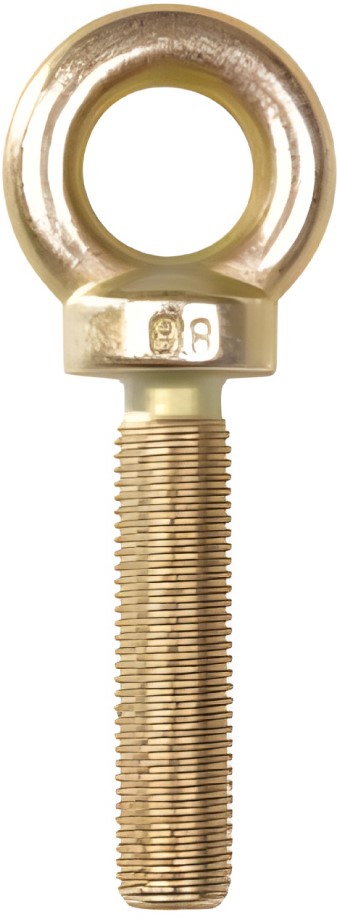

Harness Eye Bolt for Safety / Racing Harness - 50 mm | Grade 8.8
This loose harness eye bolt is specifically designed for the safe and secure installation of racing or safety harnesses. With a thread length of 50 mm and a mechanical strength grade of 8.8, this eye bolt is perfectly suited for applications where maximum safety is essential.
What does grade 8.8 mean?
Fasteners with grade 8.8 are made from alloy steel and are heat-treated for extra strength. The first 8 refers to a tensile strength of 800 N/mm² (Newtons per square millimetre), while the second 8 indicates a yield strength of 80% of the tensile strength that is, 640 N/mm². This makes the eye bolt ideal for applications subject to high loads, such as securing safety harnesses.
Specifications:
- Thread length: 50 mm
- Thread type: 7/16 - 20 UNF
- Mechanical strength grade: 8.8
- Tensile strength: 800 N/mm²
- Yield strength: 640 N/mm²
- Material: Hardened and alloyed steel
Need a different length?

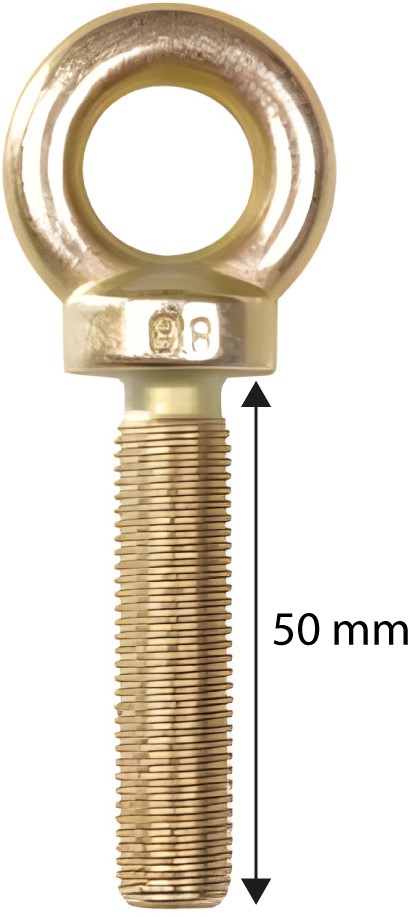

This eye bolt has a thread length of 50 mm and is also available with a thread length of 23 or 32 mm.
Why choose this eye bolt?
Thanks to its high tensile strength and reliable quality, this eye bolt offers maximum safety and durability. A must-have for professional or serious installation of racing harnesses in any (race) car.
